官网列出了很多厂商的Gateway API实现，本次安装我们最熟悉的nginx官方实现NGINX Gateway Fabric

由于k8s版本更新，Ingress已经被弃用，未来可以用Gateway API将其取代，二者区别可参考官方给出的解释从 Ingress 迁移 - Kubernetes Gateway API ，本次直接安装Kubernetes Gateway API

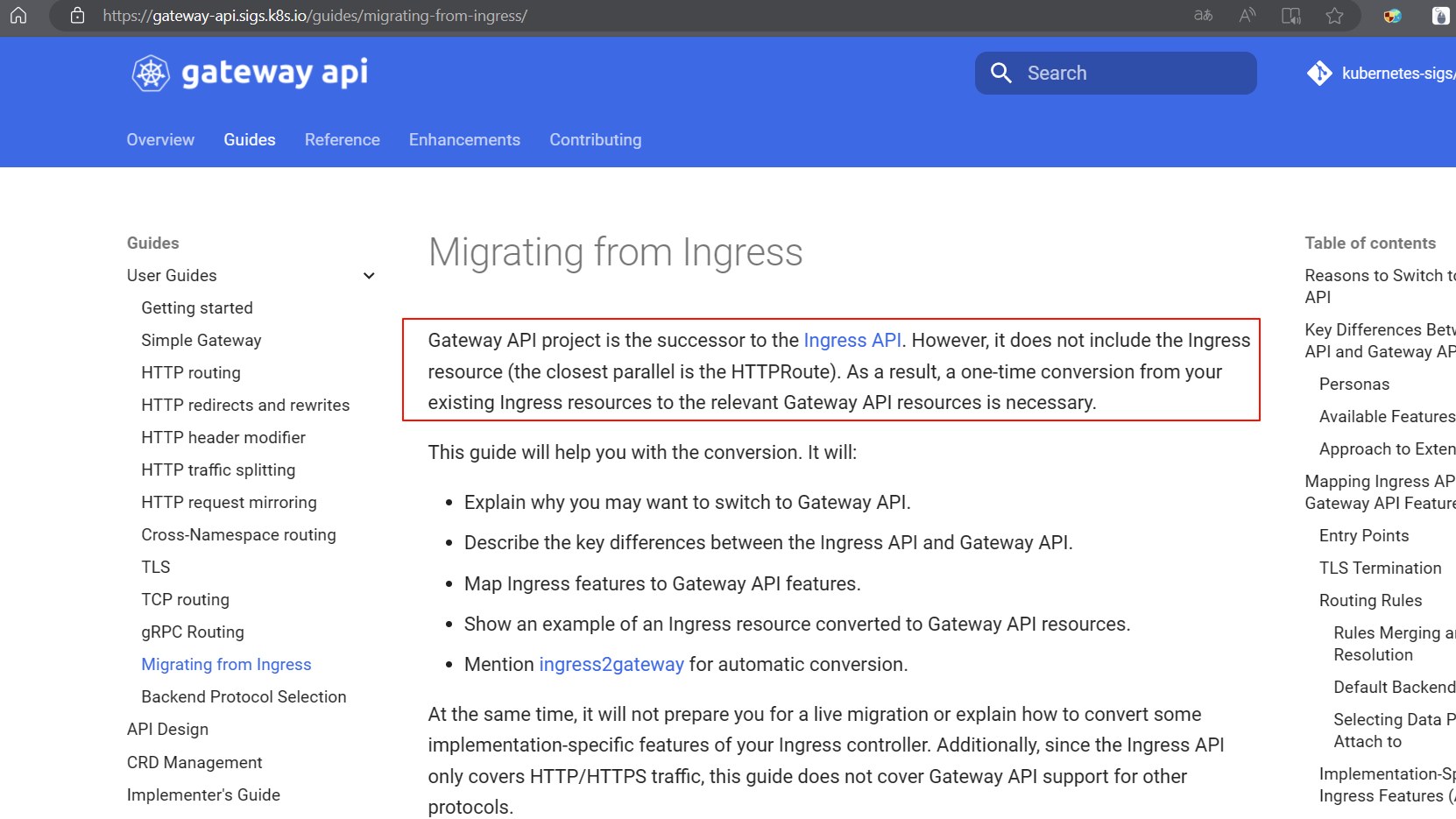

image-20240424154043878

根据readme步骤安装

Getting Started

  1. Quick Start on a kind cluster.
  2. Install NGINX Gateway Fabric.
  3. Deploy various examples.
  4. Read our How-to guides.

第一步安装一个集群，我们已经完成，跳过

第二步安装NGINX Gateway Fabric

安装Gateway API 资源
1
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.0.0/standard-install.yaml
部署NGINX Gateway Fabric CRDs
1
kubectl apply -f https://github.com/nginxinc/nginx-gateway-fabric/releases/download/v1.2.0/crds.yaml
部署NGINX Gateway Fabric
1
kubectl apply -f https://github.com/nginxinc/nginx-gateway-fabric/releases/download/v1.2.0/nginx-gateway.yaml
验证
1
2
3
[root@k8s-master gateway-example]# kubectl get pods -n nginx-gateway
NAME                             READY   STATUS    RESTARTS      AGE
nginx-gateway-66765f47f9-tctd4   2/2     Running   2 (33m ago)   74m
安装完成

部署测试

这一步需要先部署一个网关services暴漏集群端口供外部访问

创建 NodePort 服务
1
2
3
4
5
[root@k8s-master gateway-example]# kubectl apply -f https://raw.githubusercontent.com/nginxinc/nginx-gateway-fabric/v1.2.0/deploy/manifests/service/nodeport.yaml

[root@k8s-master gateway-example]# kubectl get svc -n nginx-gateway
NAME            TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)                      AGE
nginx-gateway   NodePort   10.97.97.176   <none>        80:31741/TCP,443:30532/TCP   165m

接下来就可以使用端口31741来访问了

使用 HTTPRoute将流量路由到应用

使用以下三个配置文件创建示例应用程序

gateway.yaml

1
2
3
4
5
6
7
8
9
10
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: cafe
spec:
  gatewayClassName: nginx
  listeners:
  - name: http
    port: 80
    protocol: HTTP

cafe-routes.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: coffee
spec:
  parentRefs:
  - name: cafe
  hostnames:
  - "cafe.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: coffee
      port: 80

coffee.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
apiVersion: apps/v1
kind: Deployment
metadata:
  name: coffee
spec:
  replicas: 2
  selector:
    matchLabels:
      app: coffee
  template:
    metadata:
      labels:
        app: coffee
    spec:
      containers:
      - name: coffee
        image: nginxdemos/nginx-hello:plain-text
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: coffee
spec:
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP
    name: http
  selector:
    app: coffee

部署并查看状态

1
2
3
4
5
6
7
8
9
[root@k8s-master gateway-example2]# kubectl apply -f .
httproute.gateway.networking.k8s.io/coffee created
deployment.apps/coffee created
service/coffee created
gateway.gateway.networking.k8s.io/cafe created
[root@k8s-master gateway-example2]# kubectl get po
NAME                                READY   STATUS    RESTARTS        AGE
coffee-6b8b6d6486-24t8z             1/1     Running   0               12s
coffee-6b8b6d6486-wf4v9             1/1     Running   0               12s

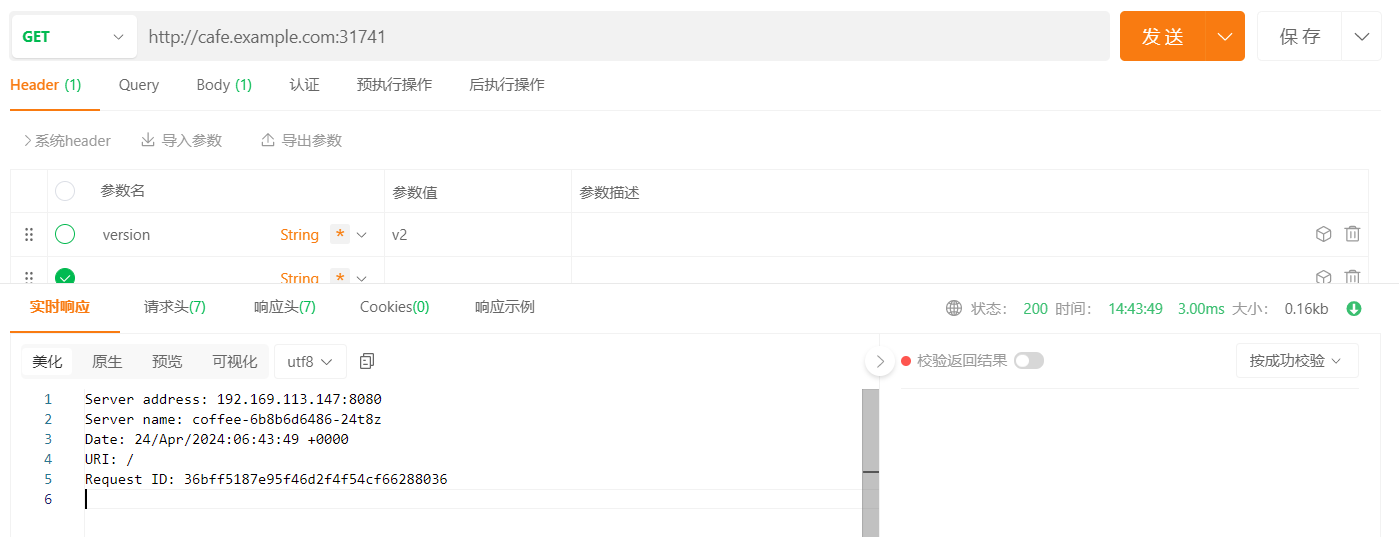

image-20240424144358556

高级应用

跨命名空间路由

假如我需要将ns=default的流量路由到ns=cafe，那么就需要在ns=cafe下新建一个ReferenceGrant，内容如下

1
2
3
4
5
6
7
8
9
10
11
12
13
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: access-to-cafe-services
  namespace: cafe
spec:
  to:
  - group: ""
    kind: Service
  from:
  - group: gateway.networking.k8s.io
    kind: HTTPRoute
    namespace: default

并在需要路由的后端服务增加ns配置

1
2
3
4
5
6
7
8
9
rules:
- matches:
  - path:
      type: PathPrefix
      value: /coffee
  backendRefs:
  - name: coffee
    namespace: cafe
    port: 80
根据HTTP参数路由
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
rules:
- matches:
  - path:
      type: PathPrefix  # 路径前缀匹配
      value: /coffee
  backendRefs:
  - name: coffee-v1-svc
    port: 80
- matches:
  - path:
      type: PathPrefix
      value: /coffee
    headers:          # 请求头匹配
    - name: version
      value: v2
  - path:
      type: PathPrefix
      value: /coffee
    queryParams:      # 请求参数匹配
    - name: TEST
      value: v2
  backendRefs:
  - name: coffee-v1-svc
    port: 80
    weight: 80         # 流量权重
  - name: coffee-v2-svc
    port: 80
    weight: 20         # 流量权重
配置请求头过滤器
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
rules:
- matches:
  - path:
      type: PathPrefix
      value: /headers
  filters:
  - type: RequestHeaderModifier  # 请求头修改
    requestHeaderModifier:
      set:  # 设置请求头
      - name: My-Overwrite-Header
        value: this-is-the-only-value
      add:  # 追加请求头内容
      - name: Accept-Encoding
        value: compress
      - name: My-cool-header
        value: this-is-an-appended-value
      remove: # 移除请求头
      - User-Agent
  backendRefs:
  - name: coffee-v1-svc
    port: 80
配置https

配置网关gateway.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway
spec:
  gatewayClassName: nginx
  listeners:
  - name: http
    port: 80
    protocol: HTTP
  - name: https
    port: 443
    protocol: HTTPS
    tls:
      mode: Terminate
      certificateRefs:
      - kind: Secret
        name: cafe-secret
        namespace: certificate

配置ReferenceGrant

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: access-to-cafe-secret
  namespace: certificate
spec:
  to:
  - group: ""
    kind: Secret
    name: cafe-secret # 如果省略, ns=default内的Gateway能访问ns=certificate的所有Secrets
  from:
  - group: gateway.networking.k8s.io
    kind: Gateway
    namespace: default

配置ns和Secret

1
2
3
4
5
6
7
8
9
10
11
12
13
14
apiVersion: v1
kind: Namespace
metadata:
  name: certificate
---
apiVersion: v1
kind: Secret
metadata:
  name: cafe-secret
  namespace: certificate
type: kubernetes.io/tls
data:
  tls.crt: xxxxxxxxx
  tls.key: xxxxxxxxx

配置路由

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: cafe-tls-redirect
spec:
  parentRefs:
  - name: gateway
    sectionName: http
  hostnames:
  - "cafe.example.com"
  rules:
  - filters:
    - type: RequestRedirect
      requestRedirect:
        scheme: https
        port: 443
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: coffee
spec:
  parentRefs:
  - name: gateway
    sectionName: https
  hostnames:
  - "cafe.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /coffee
    backendRefs:
    - name: coffee
      port: 80
配置url重写

下面配置会将url前缀为/coffee/**重写为/beans

将/latte/** 重写为/**

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
rules:
- matches:
  - path:
      type: PathPrefix
      value: /coffee
  filters:
  - type: URLRewrite
    urlRewrite:
      path:
        type: ReplaceFullPath
        replaceFullPath: /beans
  backendRefs:
  - name: coffee
    port: 80
- matches:
  - path:
      type: PathPrefix
      value: /latte
  filters:
  - type: URLRewrite
    urlRewrite:
      path:
        type: ReplacePrefixMatch
        replacePrefixMatch: /
  backendRefs:
  - name: coffee
    port: 80
路由到https服务

创建后端https服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
apiVersion: apps/v1
kind: Deployment
metadata:
  name: secure-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: secure-app
  template:
    metadata:
      labels:
        app: secure-app
    spec:
      containers:
        - name: secure-app
          image: nginxinc/nginx-unprivileged:latest
          ports:
            - containerPort: 8443
          volumeMounts:
            - name: secret
              mountPath: /etc/nginx/ssl
              readOnly: true
            - name: config-volume
              mountPath: /etc/nginx/conf.d
      volumes:
        - name: secret
          secret:
            secretName: app-tls-secret
        - name: config-volume
          configMap:
            name: secure-config
---
apiVersion: v1
kind: Service
metadata:
  name: secure-app
spec:
  ports:
    - port: 8443
      targetPort: 8443
      protocol: TCP
      name: https
  selector:
    app: secure-app
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: secure-config
data:
  app.conf: |-
    server {
      listen 8443 ssl;
      listen [::]:8443 ssl;

      server_name secure-app.example.com;

      ssl_certificate /etc/nginx/ssl/tls.crt;
      ssl_certificate_key /etc/nginx/ssl/tls.key;

      default_type text/plain;

      location / {
        return 200 "hello from pod secure-app\n";
      }
    }
---
apiVersion: v1
kind: Secret
metadata:
  name: app-tls-secret
type: Opaque
data:
  tls.crt: xxxxxxxx
  tls.key: xxxxxxxx

创建网关和路由

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway
spec:
  gatewayClassName: nginx
  listeners:
  - name: http
    port: 80
    protocol: HTTP
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: secure-app
spec:
  parentRefs:
  - name: gateway
    sectionName: http
  hostnames:
  - "secure-app.example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /
    backendRefs:
    - name: secure-app
      port: 8443

这时直接应用之后访问会报错400 Bad Request

还需要接着配

1
2
3
4
5
6
7
8
9
kind: ConfigMap
apiVersion: v1
metadata:
  name: backend-cert
data:
  ca.crt: |
    -----BEGIN CERTIFICATE-----
    xxxxxx
    -----END CERTIFICATE-----

创建BackendTLSPolicy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
apiVersion: gateway.networking.k8s.io/v1alpha2
kind: BackendTLSPolicy
metadata:
  name: backend-tls
spec:
  targetRef:
    group: ''
    kind: Service
    name: secure-app
    namespace: default
  tls:
    caCertRefs:
    - name: backend-cert
      group: ''
      kind: ConfigMap
    hostname: secure-app.example.com
